IOMMU Bypass: Finding Potential Misconfiguration

IOMMU Bypass: Finding potential misconfigurations

Introduction: IOMMU abbreviation for Input Output Memory Management Unit is a hardware component present in the chipset that helps with mapping the virtual memory address provided by a peripheral device into the actual memory address. Our vulnerability research has found out a driver that allows user-mode applications to write into the PCI Configuration Space for Peripherals, The PCI Configuration contains the Base Address Registers which we now can write into to force the device to write onto those Addresses instead of their default ones. This can lead to critical infrastructure memory overwriting. However, IOMMU maps out the Direct Memory Accessible space for these peripherals. Since IOMMU is hardware based such as Intel VT-d and AMD-Vi and can only be enabled/disabled through the BIOS. We require a way to instead look for misconfiguration

Observation: IOMMU status can be found out using msinfo32 with the item name being “Kernel DMA Protection”. We looked at 10 different user personal computers and found that all of them had this Item value to be “On”. Therefore, we can conclude almost all the personal computers have IOMMU protection for hotplug/thunderbolt devices to be true by default, a rate of 100%. Since IOMMU is incredibly common, we will have to look for misconfiguration in these devices so that this could potentially be exploited.

Problem: Having a strong kernel-level primitive like PCI Config space R/W for peripherals are heavily constrained due this hardware based protection. Bypassing IOMMU could allow for primitives greater than just DoS possibility. Fixing this issue could grant us stronger primitives such as kernel memory overwrite and corruption.

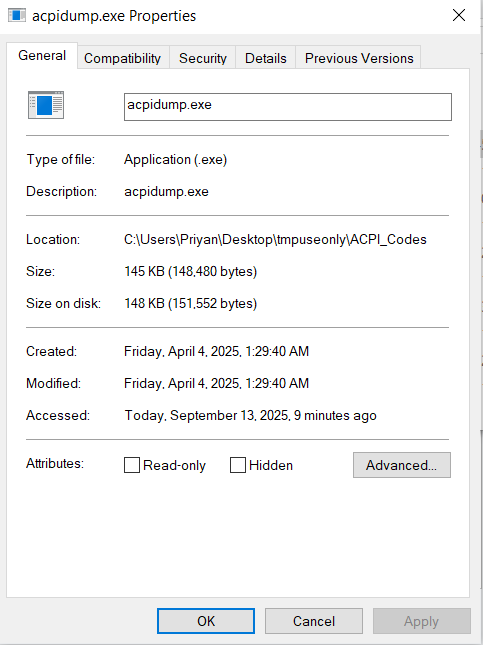

Methodology: Since IOMMU is turned on, we should first try to look for the IOMMU mapping. Fortunately manufacturers use ACPI (Advanced Configuration and Power Interface) for Firmware–Hardware–OS communication. ACPI exposes certain tables in the memory which the OS can use to look at the status of the hardware. The table we are interested in is the DMAR table (DMA Remapping Table), The DMAR tells us what memory ranges are allowed by the firmware for devices to access via DMA. Therefore, we should first try to read the DMAR table. Fortunately, we have an extremely useful tool called ACPIDMUP.EXE which we will utilize for dumping every ACPI Table.

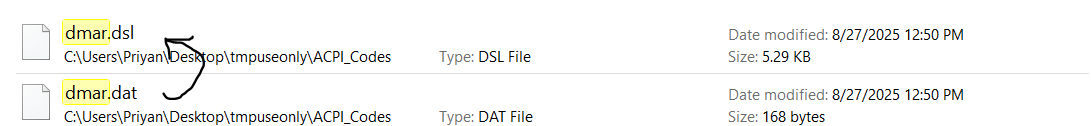

Through this, we were able to get the dmar.dat file which we converted into the .dsl extension for reading.

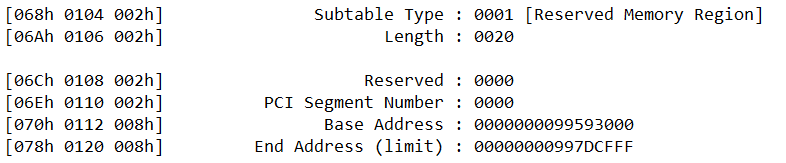

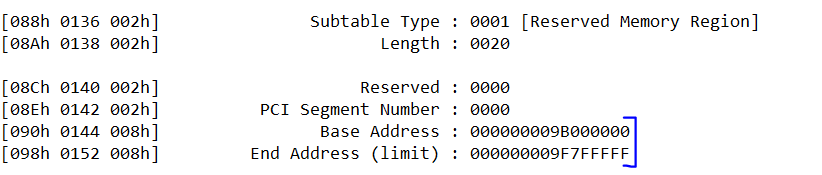

The DMAR table consists of two types, The RMRR and the DRHD. The RMRR is the Reserved Memory Region Reporting which tells us what section of the memory has been reserved for certain devices. From our dump, we can clearly see this:

These sections are interesting because they are reserved by the firmware for these two devices so that they can DMA into these sections without requiring the normal IOMMU translation. These two ranges are device specific, therefore this range isn’t the universal IOMMU DMA Translation accessible range but rather just for the two devices we see. This is still a very interesting option for us because if any of these memory regions contain anything system critical then that could allow for memory overwriting. Let’s see if there exists some sort of misconfiguration.

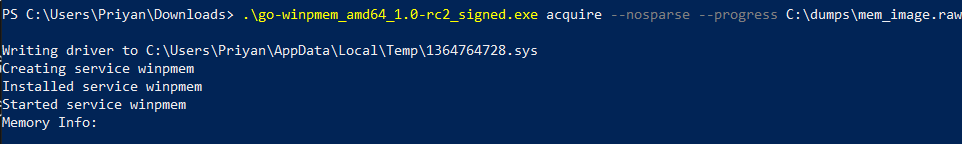

Our approach right now would be to use WinPmem.exe to write the current memory into disk, we could then look through the raw disk file for anything interesting inside those memory sections we see.

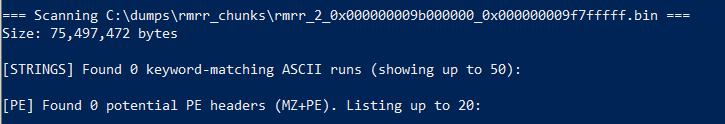

After we got the .raw disk file. We used a python script to check for any interesting memory sections containing anything which might be interesting however we didn’t find anything in there

This output does make sense as these memory regions have been reserved for the peripheral devices and it would be weird for there to exist any PE files in there or literally anything that is not a bunch of 00s.

Conclusion: Therefore for this particular instance of the two peripherals we looked at, we can conclude that no obvious misconfigurations exist there. However there might exist other DMA capable devices that might be mapped into a critical kernel area where we can control the BARs using our PCI R/W capabilities. This could lead to memory overwriting. This was just a simple PoC approach for looking for misconfigurations

Future Work: Looking at the memory range of other devices and checking if those ranges contain anything critical and sensitive would be the next approach.

Security Disclosure: All the work was performed inside an isolated lab environment and on systems we control. Please ensure that you follow proper security etiquette whilst performing such research.
