Playing with RPCs to eventually exploit it
Playing with RPCs to eventually exploit it
Introduction: Remote Procedure Calls (RPCs) are protocols that allow applications to call functions of different processes remotely in the same network. The client calls a local procedure with parameters, the data gets packaged into marshals. The marshals are sent to the server where the server stub decodes the marshal and executes it. The server makes its own response marshal and sends it back to the client. The windows OS exposes some RPCs by default which could be used for having other applications do the work for us, RPCs even work locally, this can be used for avoiding API calls and instead outsourcing our work to them or could allow for some other vulnerability as this seems similar to how IOCTLs worked when we did our driver vulnerability hunting. What’s even better is that a lot of RPCs are undocumented unlike API calls which adds to the obscurity of this method.
Setting up the environment: We will move towards the canary build for Windows 10 now for all our testing to ensure our work will work on the latest version and not version dependent. Turns out, the canary build upgraded my VM into windows 11, oh well, windows 11 it is then. Also the whole setup took 8 hours to complete, which is insane, my PC is showing its age now.</span>

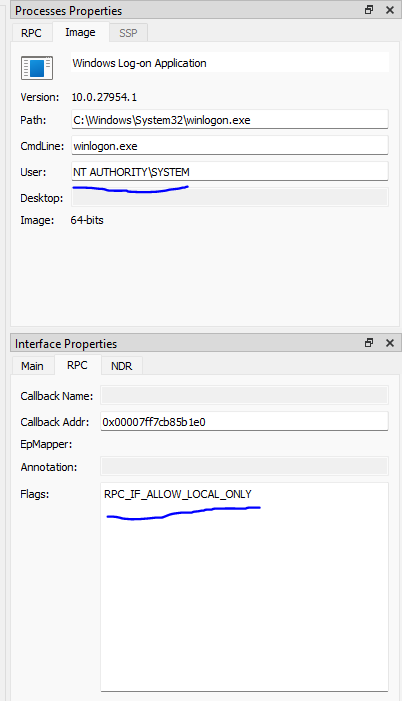

Research: We will first require a way to find all RPC Interfaces availables, let’s use RPCView.exe to take a look at the RPCs available. Since we are just starting, let’s just select a random RPC Interface to look at. The following is WinLogon.exe which is exposing an RPC locally. This choice was solely made because WinLogon.exe is running at SYSTEM Integrity. The aim of this particular research is about getting used to RPC and improving how the hunt for RPC vulnerabilities could look like, getting a vulnerability on the first try is unlikely but just like the vulnerable driver hunting, the hunting strategy improves over time.

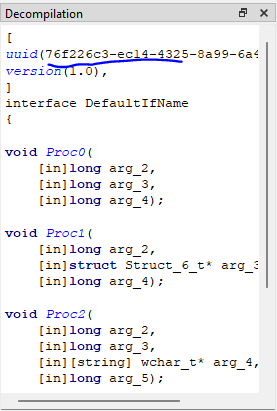

Operating with a mindset of driver hunting, I want to look at the function inside of Ghidra. Fortunately, we do see a UUID for the procedure interface inside of RPCView:
Therefore, let’s try and open winlogon.exe and check if we can search for this UUID in it. Before that, lets get the PDB File as that is a privilege we get to have for testing windows applications that we didn’t for the drivers. Using WinDBG and attaching to that process, I was able to get the PDB File installed.

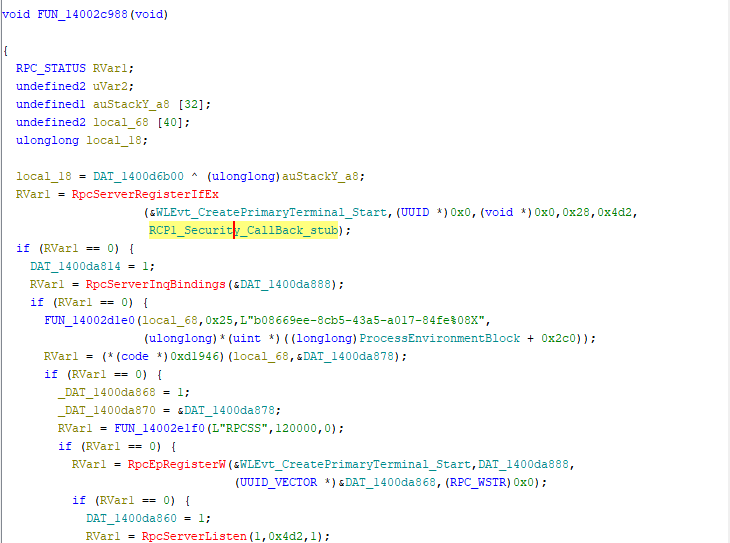

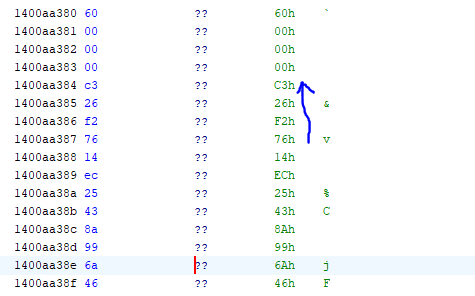

We were not able to find the exact binary order through decompiled text however we were able to find this RpcServerRegisterIfEx flag and this is the one we saw in RPCView.exe

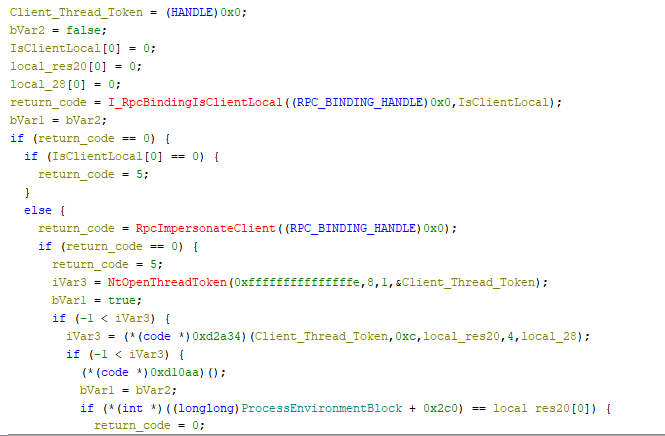

76F226C3 is what we saw inside of RPCView.exe, It’s not the exact match but it is close, We also see the fourth argument which corresponds to the security callback function. Its purpose is to check whether the RPC request meets the right condition in terms of privilege. Lets take a look at it:

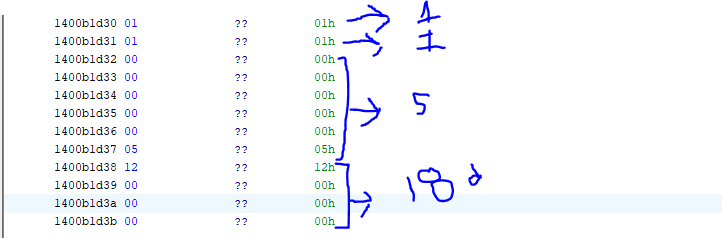

The security token is compared with this structure which is the SID struct.

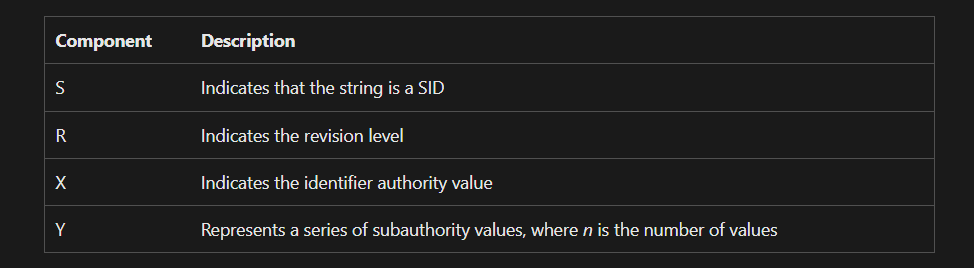

Therefore this can be written as S-1-5-18. According to Microsoft Security Identifier page:
When X = 5, it means System-Integrity therefore, we can conclude that this particular RPC call for this UUID would require the process to be local and require SYSTEM Integrity. While this can still be useful based on the functionality of the RPC Call. We will take a look at a different RPC Interface
Lets select this one –
The first argument is a structure that contains the UUID for the RPC Interface (as seen in RPCView)
Nope, this is also not very interesting, this function verifies whether the client thread ID matches with itself i.e. only for intra-process communication. It is internal and cannot be accessed via an external program unless we can somehow cause token impersonation. Let’s take a look at the next one:

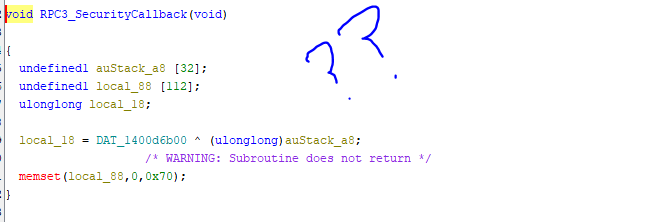

The security callback seems to be doing nothing about security. Which means that any process of any integrity can communicate with this RPC. Therefore, we can continue onwards to check what the RPC function would actually do in case of an RPC Request. We looked at the structures, converted them into QWORDS, hopped around address to address until we found this:

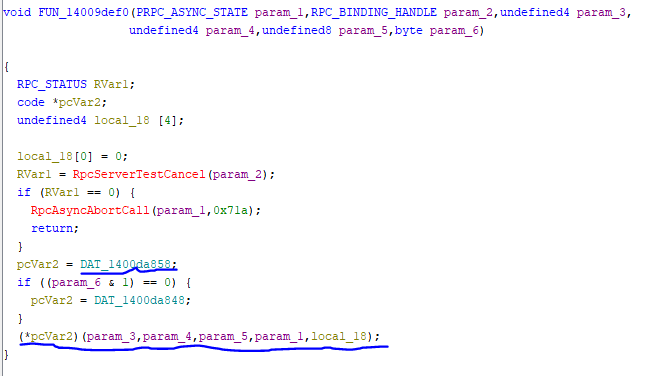

We see these functions that look like the actual RPC Handlers i.e. the functions called when the RPC Request is sent. It seems like the unmarshalling is done through the NdrAsyncServerCall API and it returns back to these Functions we see here. After going into the function, we can confirm that the RPC Request is sent to another global structure indirectly. Instead of directly calling the function or even taking actions. It’s instead called through this structure.
Let’s take a look at this structure:

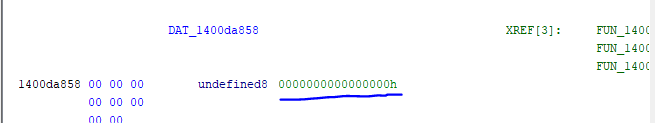

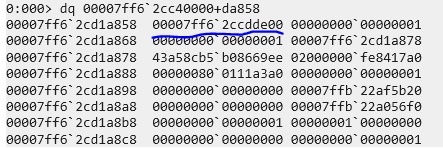

This seems to be pointing to nowhere, i.e. this is probably dynamically allocated. This can be checked using WinDBG, we first used psexec to get a SYSTEM integrity CMD where we then used psdump to get the dump based on the PID provided by RPCView. The .dmp file was then opened through winDBG for analysis.

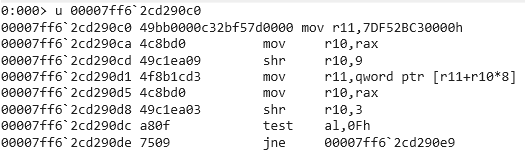

The offset ends up being: “9DE00” which means it is 14009DE00 in Ghidra. It does end up being a function:

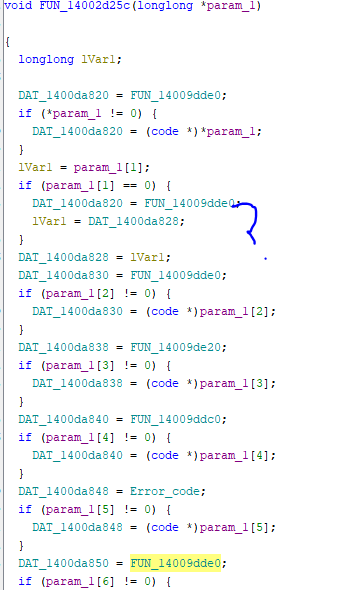

By searching the references to the function we just found, we were able to discover what’s actually happening. Where all of the functions are being defined:
All these functions are just error_code functions that do not result in anything useful, therefore exploitations in these are not possible. However, we still haven’t looked at the other pointers, those might have been dynamically changed
Let’s look at that:
On Ghidra:
We found the function. Therefore for that particular RPC call, the function pointer does indeed get dynamically changed into a different one. This is where we wanted to be, we control the params here from the RPC Request, therefore any flaws in the code here can easily lead to vulnerabilities if our user control variable is not properly dealt with. There is also one other issue that we just glanced past, which is the fact, we still aren’t sure which UUID RPC will lead to this function being executed. Remember, only the third one UUID RPC function actually had the security callback with the Security Identifier not being SYSTEM. Just looking at this function, we can infer that based on param_1 we can control the flow of execution. It does give us pretty powerful primitives such as disconnecting other users and changing the state of the computer. If this is executed by that non-security callback RPC function then this is already a vulnerability through Semi User Privilege Escalation (sUPE).
A more accurate description of what we have going on:

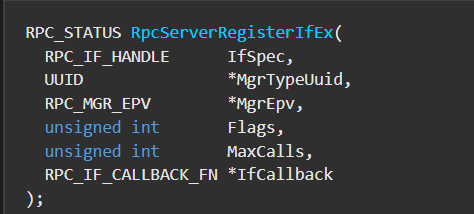

The RPC Interface is the function that sets up the RPC server through APIs like RPCRegisterServerIfEx:
The first argument is the Interface structure generated by MIDL (Microsoft Interface Definition Language). The last argument is the security callback which deals with the privilege and conditions required for the user for the RPC to happen.

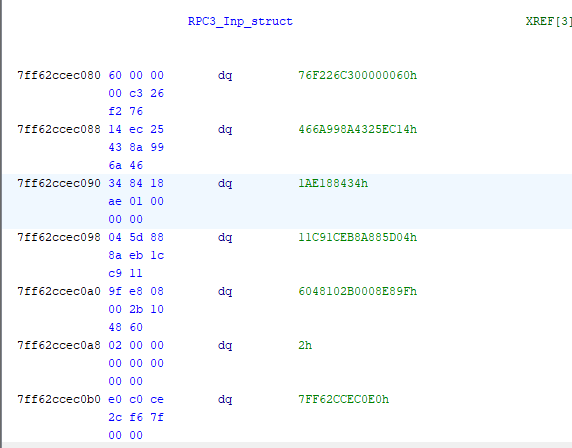

Let’s look at the structure:

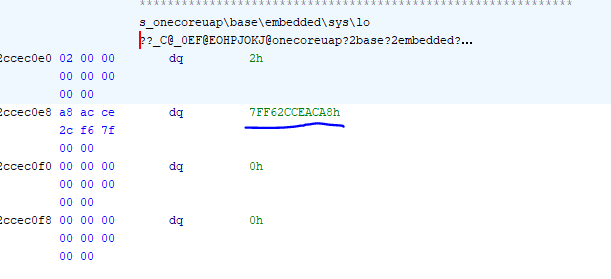

The first two QWORDS look like the UUID for the interface and the last one contains the address to another structure which is the Server info structure:
This one contains the address to another structure having the dispatch table aswell as the unmarshalling process (unmarshalling means decoding the information sent from the client)

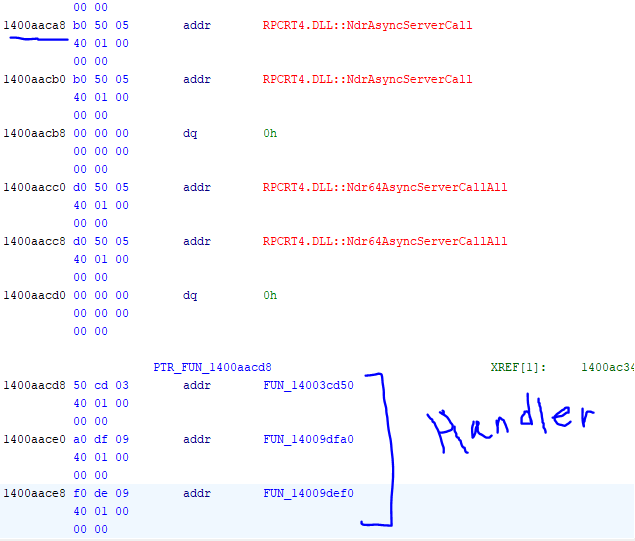

We are pointed to the address of the NdrAsyncServerCall (probably responsible for the unmarshalling process) and below this, we see this:

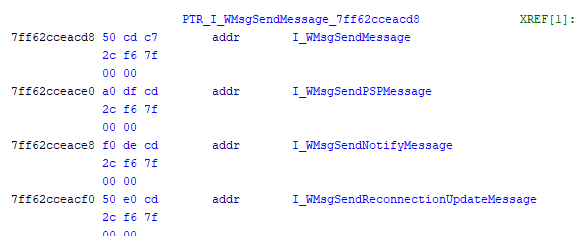

This is the dispatch table containing the function that will be executed. We have four functions here and previously the confusion lied on which of these four functions will be executed however that is completely user dependent i.e. the user can provide any given operational number (0-3) which will be mapped out to these functions.
Let’s go through each of individual functions in the dispatch table:
We already know through dynamic analysis, this one called the pointer that didn’t change aka contained the error code.
The second one was also checked and contains several interesting functions that can allow us to Logout other users, change the state of the machine etc.
The third function takes us to “7ff62ccdde00” which is also error_code however there is a conditional statement which if satisfied will take us to “7ff62ccd66e0” and that is a real function named ‘WMsgNotifyHandler”
Points to “WmsgSendReconnectionUpdateMessage”
I am starting to see a pattern here. The function name in the dispatch table is where the dynamic pointers eventually take us to. Very interesting, it’s possible that is also the case for the first function and we just happened to miss it. Now, considering we have all the function names (thanks to the PDB and Dynamic analysis). We should take a look at those functions and check what sort of primitives we get our hands on.

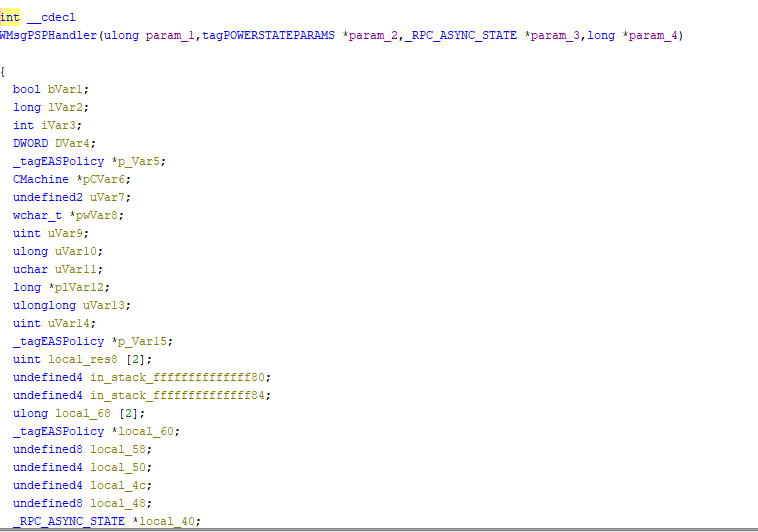

The first function can allow the user to make Winlogon.exe connect to an user controlled RPC Server. Potentially Interesting. The other two functions are not that interesting either. The WMsgPSPHandler is the most interesting among them all. Therefore, let’s take a look at that:
It’s similar to how the IRP_DEVICE_CONTROL Function worked, we have various op codes that we can use for different functionality. Most of it is about logging however there also exists a few of them that are actually a bit more impactful, code 0x105, 0x106 call privileged functions such as WinStationDisconnectWrapper and WlStateMachineSetSignal which can be used for DoS.
Conclusion: We were able to play around with RPCs and find a misconfigured RPC interface present inside of Winlogon.exe that allows for executing certain privileged functions leading to DoS and also can allow us to make winlogon login to an attacker-controlled RPC Interface.
Future Work: We will look at other applications inside of Windows that can lead to more serious vulnerabilities such as Local privilege escalation. The methodology is quite similar now, once we find a viable candidate, then we can work on making a PoC.
Security Disclosure: All the work was performed inside an isolated lab environment and on systems we control. Please ensure that you follow proper security etiquette whilst performing such research.
